Overhead Transmission Hydraulic Max Tension2x70/1x140kN Cable Tensioner
  • Nama
  • Nama

Overhead Transmission Hydraulic Max Tension2x70/1x140kN Cable Tensioner

MOQ: 1set
Price: USD94,000-97,000/set
kemasan standar: Wadah
Periode pengiriman: 15-35 hari
metode pembayaran: L/c, t/t
Kapasitas Pasokan: 10set/bulan
Informasi Rinci
Deskripsi Produk
Informasi Rinci
Tempat asal
CINA
Nama merek
HANYU
Sertifikasi
ISO9001
Nomor model
Ty2x70iv
Jenis:
Tensioner Kabel Hidraulik
Diesel:
77kw (103hp)
Diameter Konduktor Max:
40mm
Sistem Listrik:
24v
Nomor alur:
2x8
Ketegangan Max Intermitent:
2x70/1x140kN
Menyoroti:

hydraulic cable tensioner for transmission lines

,

overhead transmission cable tensioner 70kN

,

high-tension cable tensioner with hydraulic system

Deskripsi Produk

Overhead Transmission Hydraulic 2x70/1x140kN Cable Tensioner



Performance
  1. Max intermittent tension: 2x70/1x140kN
  2. Max continuous tension: 2x65/1x130kN
  3. Max reverse pulling force: 2*60kN/1*120kN
  4. Max speed: 5km/h
  5. Max reverse pulling speed: 5km/h
  6. Speed at max tension: 2.5km/h
  7. Pull at max speed: 2x25/1x50kN



Characteristics
  1. Max conductor diameter: 40mm
  2. Bull-wheel diameter: 1500mm
  3. Groove number: 2x8
  4. Overall dimension (length*width*height):5500*2280*2700mm
  5. Total weight: 12000kg

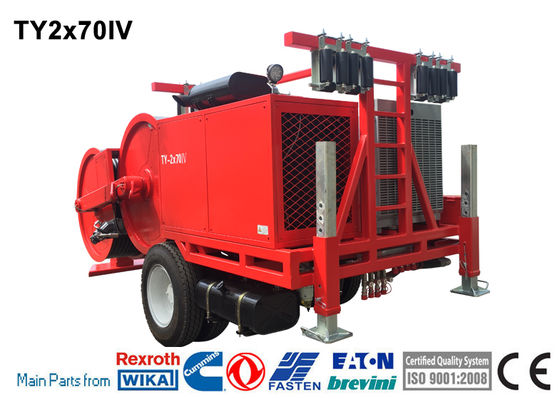

TY2x70IV Hydraulic Tensioner
  • The machine allows for the tension stringing of four-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
  • Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains



Engine
  1. Diesel: 77kw(103hp)
  2. Electrical system: 24V
  3. Cooling system: water



Main configuration
  1. Speed reducer: German Rexroth / Italy Bonfiglioli
  2. Hydraulic pump: German Rexroth/Dnish Danfoss
  3. Main hydraulic valves: USA Sun / Italy ATOS
  4. Engine: Cummins
  5. Main motor:German Rexroth/French Leduc



Configuration
  • 2 negative self-acting hydraulic brakes
  • 2 digital meter and speed counters
  • Grounding connection point
  • Hydraulic front stabilizer
  • 2 hydraulic dynamometers
  • Hydraulic oil cooling system
  • Control instruments for hydraulic system and diesel engine
  • Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor



Hydraulic Transmission
  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.



Additional Devices
  • Air brake system for the trailer (extra charge)
  • Digital Speed and meter counter
  • Lighting system for the trailer
  • Swivel guide rope roller
  • 4 hydraulic rope/conductor clamp (extra charge)



Overhead Transmission Hydraulic Max Tension2x70/1x140kN Cable Tensioner 0
