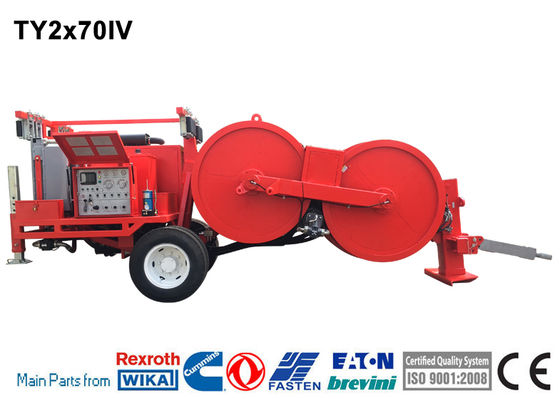

Name: 2x70/1x140kN Hydraulic Wire Tensioner/Cable Pulling Hydraulic Tensioner
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: Ty2x70iv
Price: 95.00 USD
Availability: InStock

MOQ:	1set
Price:	USD94,000-97,000/set
kemasan standar:	Wadah
Periode pengiriman:	15-35 hari
metode pembayaran:	L/c, t/t
Kapasitas Pasokan:	10set/bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal

CINA

Nama merek

HANYU

Sertifikasi

ISO9001

Nomor model

Ty2x70iv

Jenis:

Tensioner kabel kabel hidrolik

Tarik dengan kecepatan maksimal:

2x25/1x50kN

Ketegangan Max Intermitent:

2x70/1x140kN

penekanan kawat hidrolik:

2*60kN/1*120kN

Diameter roda banteng:

1500mm

Diameter Konduktor Max:

40mm

Menyoroti:

hydraulic wire tensioner 70kN

cable pulling tensioner 140kN

transmission line hydraulic tensioner

Deskripsi Produk

2x70/1x140kN Hydraulic Wire Tensioner/Cable Pulling Hydraulic Tensioner

Performance

Max intermittent tension: 2x70/1x140kN
Max continuous tension: 2x65/1x130kN
Speed at max tension: 2.5km/h
Max speed: 5km/h
Pull at max speed: 2x25/1x50kN
Max reverse pulling force: 2*60kN/1*120kN
Max reverse pulling speed: 5km/h

Main configuration

Engine: Cummins
Hydraulic pump: German Rexroth/Dnish Danfoss
Main motor:German Rexroth/French Leduc
Speed reducer: German Rexroth / Italy Bonfiglioli
Main hydraulic valves: USA Sun / Italy ATOS

Engine

Diesel: 77kw(103hp)
Cooling system: water
Electrical system: 24V

Characteristics

Bull-wheel diameter: 1500mm
Max conductor diameter: 40mm
Groove number: 2x8
Total weight: 12000kg
Overall dimension (length*width*height):
5500*2280*2700mm

Hydraulic Transmission

The machine can realize step less speed.
The machine is provided with tension presetting system.

Configuration

2 negative self-acting hydraulic brakes
2 hydraulic dynamometers
Hydraulic oil cooling system
2 digital meter and speed counters
Control instruments for hydraulic system and diesel engine
Hydraulic front stabilizer
Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor
Grounding connection point

Additional Devices

Lighting system for the trailer
4 hydraulic rope/conductor clamp (extra charge)
Swivel guide rope roller
Air brake system for the trailer (extra charge)
Digital Speed and meter counter
